Bore Alignment with ProOrbit 20

ProOrbit
Order number: SP PROORBIT 20
Description: Complete package consisting of the ProOrbit 10 package plus additional adapters for the laser.
Product information "Bore Alignment with ProOrbit 20"
PC microLevel 20

ProOrbit® 20

ProOrbit® 20 is a complete package consisting of the ProOrbit 10 package plus additional adapters for the laser.

Overview

User Guide(s) "Bore Alignment with ProOrbit 20"
Technical Data "Bore Alignment with ProOrbit 20"

Laser Tools

T250 Laser

T250 – Round Laser SourceThe T250 Laser is a highly developed Laser source that is very small in dimension, which is a great help when measuring where there´s not much room! The T250 Laser possesses a beam of outstanding quality. Available as package with mounting adapter and power supply.

R545 Laser Receiver

R545Laser Receiver with PSD Technique and Bluetooth ConnectionThe R545 is a rugged but precise 2D Laser-Position detector. It was developed originally for machine tool alignment applications. Because of the Wireless interface and its versatility it used today in a multitude of applications. Together with the ProLine V2 Software application we measure X, Y und Z simultaneously. If we use the T430 as a laser source we have a reference which automatically levels itself. These features together are very powerful and save a great deal of time on-site.Available as package with mobile viewer SP V520 and power supply (SP R545-P).

Display Unit

DU420 Display Unit

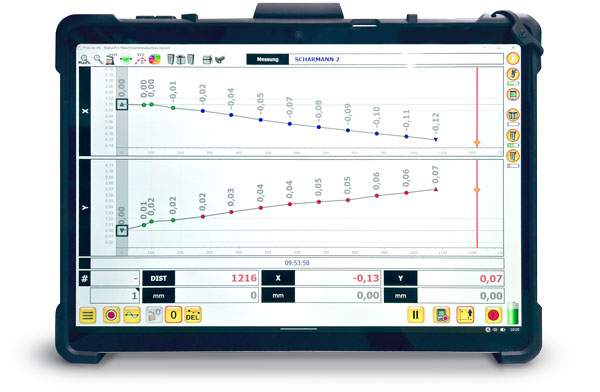

DU420Rugged UMPC for industrial on-site. The UMPC offers protectors, shockproof design, holder for hand / arm. Shock resistantWater resistantOperating time up to 10 hours, without limit while using an external adapter via microUSB

Software

ProOrbit V3 Software

ProOrbit® v3Alignment Software for Bores and Bearing WaysThe perfect software for bore alignment: Wireless transmission of x, y and rotation angle from the receiverAutomatic measuring precision and plausibility testAutomatic connection management, wireless via BluetoothTwo-point, three point bore-centre detection for circular fitsAbsolutely precise measurements due to n-pointFlexible Delta FIXTUR from 59mm - 2000mm T250 laser adjustable in offset and angle!Superb user interface : Practical and ergonomic Color Touchscreen UMPC, rugged and lightReports and measured data can be stored on USB stickAutomatic calculation of the best reference

Mounting Accessory

Borealign Basic Kit

Borealign Basic Kit for R545 The Basic Kit includes the adapter for the R545 for bore diameters of 60 – 450 mm. Specially developed set for measuring Bores, Turbines and similar tasks. Complete with all the necessary attachments and extensions plus a large sortiment of fixings and screws to enable mounting in the most difficult and adverse conditions. Will be sent in a separate case also including foam inlays.

Borealign Kit 1

Borealign Kit 1 – additional system for R545 Kit 1 includes the adapter for the R545. Will be sent in the case of borealign basic kit.

Borealign Kit 2

Borealign Kit 2 – Additional System for T250 Kit 2 includes the adapter for the T250 laser for bore diameters of 60 – 450 mm. Specially developed set for measuring Bores, Turbines and similar tasks. Complete with all the necessary attachments and extensions plus a large sortiment of fixings and screws to enable mounting in the most difficult and adverse conditions. Will be sent in the case of borealign basic kit.

Borealign Kit 3

Borealign Kit 3 Mounting kit for bore diameters of 450 – 1200 mm.
